2300 Series Parts Manual Bottom Module

- 25 -

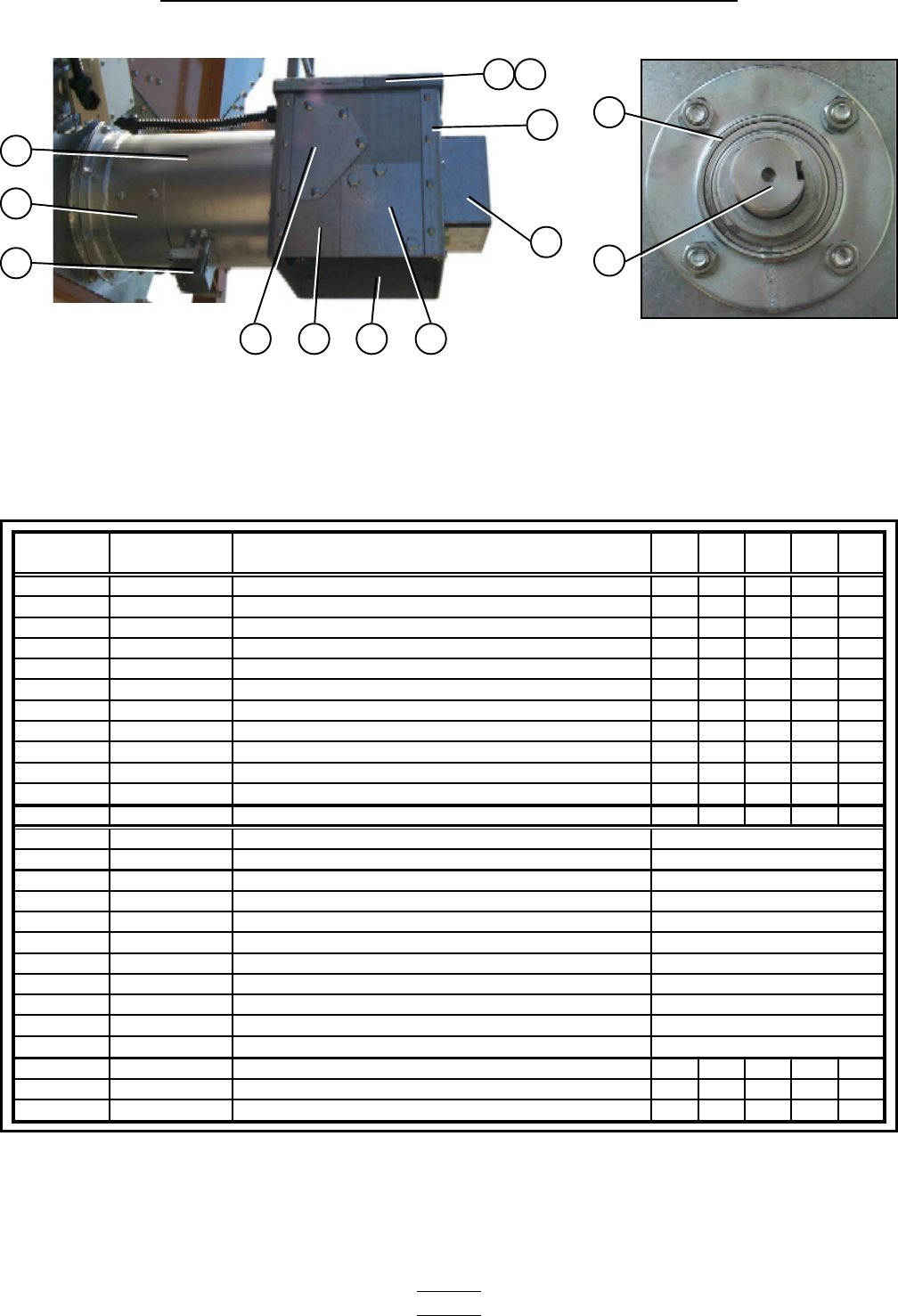

Bottom Auger

Rear Discharge Box. Auger bearing.

13 14 15

18 19

ITEM

NUMBER PART NUMBER

DESCRIPTION 2314 2318 2320 2322 2326

1 D01-1214 PLENUM CLOSURE DOOR, REAR 11111

2 D01-1134 PLENUM CLOSURE DOOR 6 8 9 10 12

3 D21-0017 AUGER BOTTOM FRONT WELDMENT 1 1

3 D31-0092 AUGER BOTTOM FRONT WELDMENT 1 1

3 D31-0092 AUGER BOTTOM FRONT WELDMENT (116 3/8" LONG) 1

4 D31-0267 AUGER BOTTOM REAR WELDMENT 1 1 2 2

4 D61-0184 AUGER BOTTOM REAR WELDMENT (117 7/8" LONG) 1

5 D01-1290 HANGER BEARING BOTTOM J-PLATE 22244

6 D01-1291 HANGER BEARING BOTTOM C-CHANNEL 11122

7 D01-1246 HANGER BEARING ASSEMBLY (SHORT) 22233

8 D31-0076 SHAFT, AUGER SPLICE 22233

9-19 D01-0481-MS DISCHARGE BOX ASSEMBLY 11111

9 D01-1884 DISCHARGE WELDMENT

10 D01-1886 MOIST. SAMPLER TUBE COVER PLATE

11 D01-0405 GRAIN SAMPLER ASSEMBLY

12 D01-1752 DISCHARGE SIDE COVER

13 D01-1751 DISCHARGE SICE PANEL MC

14 D31-0298 DISCHARGE SIDE PANEL

15 D01-1885 MOIST. SAMPLER COVER PLATE

16 D01-1650 REAR AUGER BEARING SHIELD

17 D31-0299 DISCHARGE BOX BEARING PLATE

18 D01-0466 DISCHARGE TOP PANEL

19 D01-0467 DISCHARGE TOP FLAPPER

20 D32-0001 FLANGETTE BEARING 11111

21 D31-0005 SHAFT, TOP &BOT AUGER STUB 11111

NOT SHOWN D31-0079 DISCHARGE AUGER WELDMENT 11111

1/ASSEMBLY
