2300 Series Parts Manual Fan Heaters

- 42 -

4 412

5 7 8 9 10 11

4 5 4

6 6

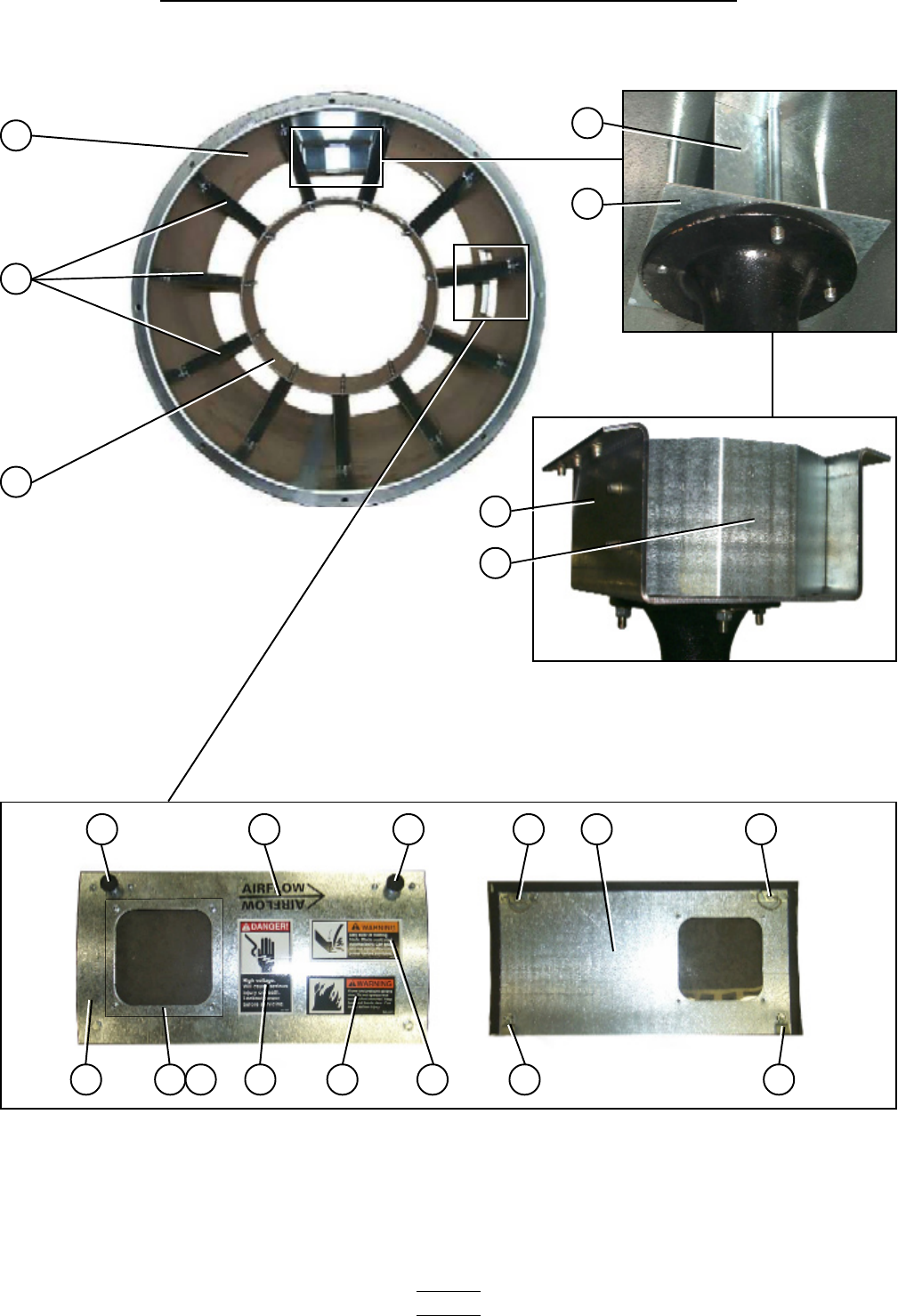

Heater access panel assembly (left photo is outside and right photo is inside of the door). Items 4 through

8 make up the heater access panel assembly (part no. CD-APA6065).

Fan Heater Housing Assembly

Fan Heater housing assembly. 26” & 28” burner support and

collector cup.

36”-42” burner support and collector cup.

14a

13a
