2300 Series Parts Manual Bottom Module

- 9 -

9 6

11a

Center hanger bearing support

and cross channel seal plate.

Wooden meter roll support bearing.

The meter roll sections are spliced

together with a meter roll splice

shaft (part no. D31-0046) that

passes through the support bearing

assembly.

Discharge bearing plate.

12 13 12 14 15 3

181716

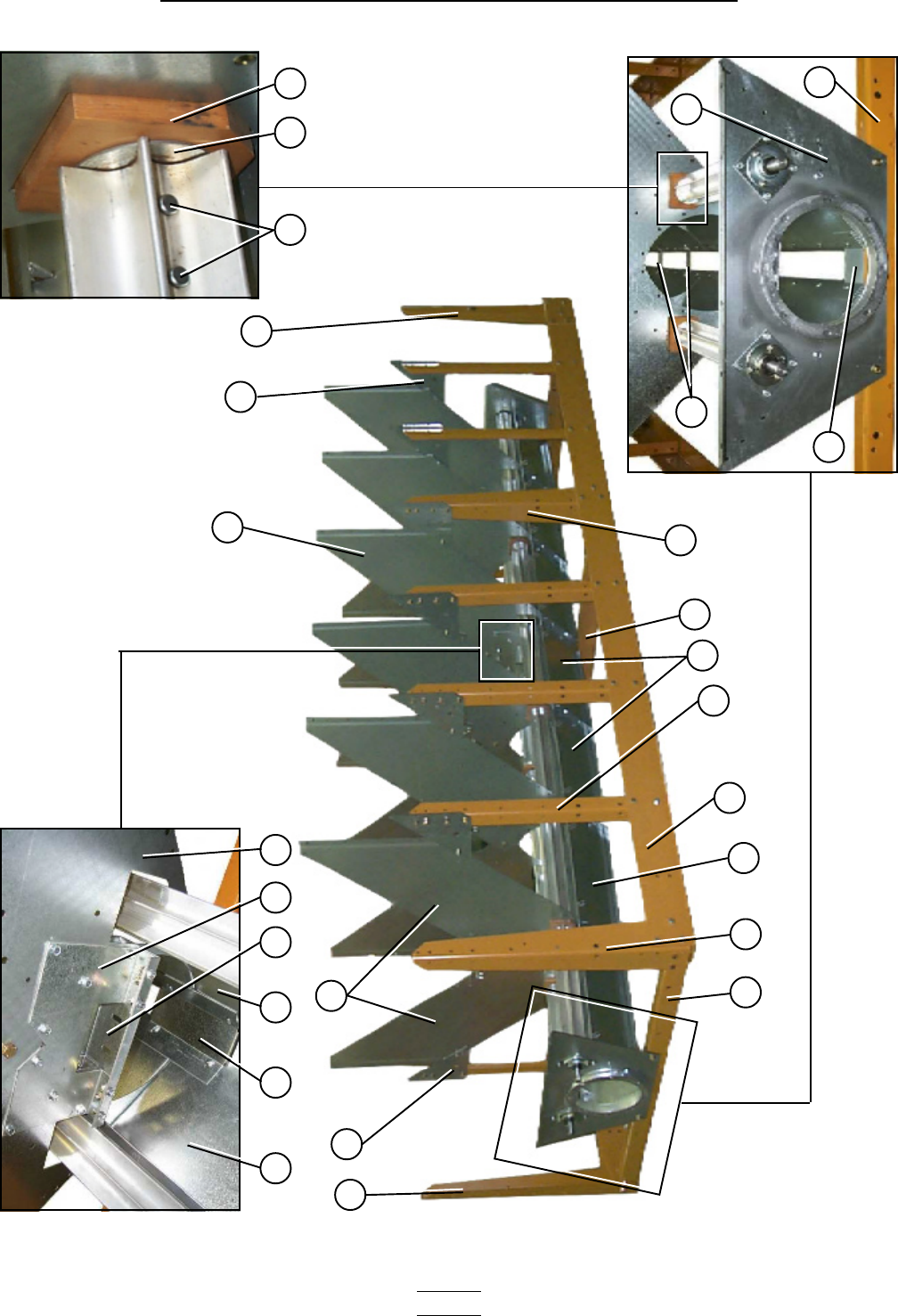

Dryer frame and lower basket assembly (view from the

rear end of the dryer looking up the right side).

**NOTE: The parts pointed out on this page are listed on page 11.

Frame / Auger Trough / Hopper Bulkheads
