2300 Series Parts Manual Top Module

- 34 -

Inside (Plenum) Screens / Outside Screens

910

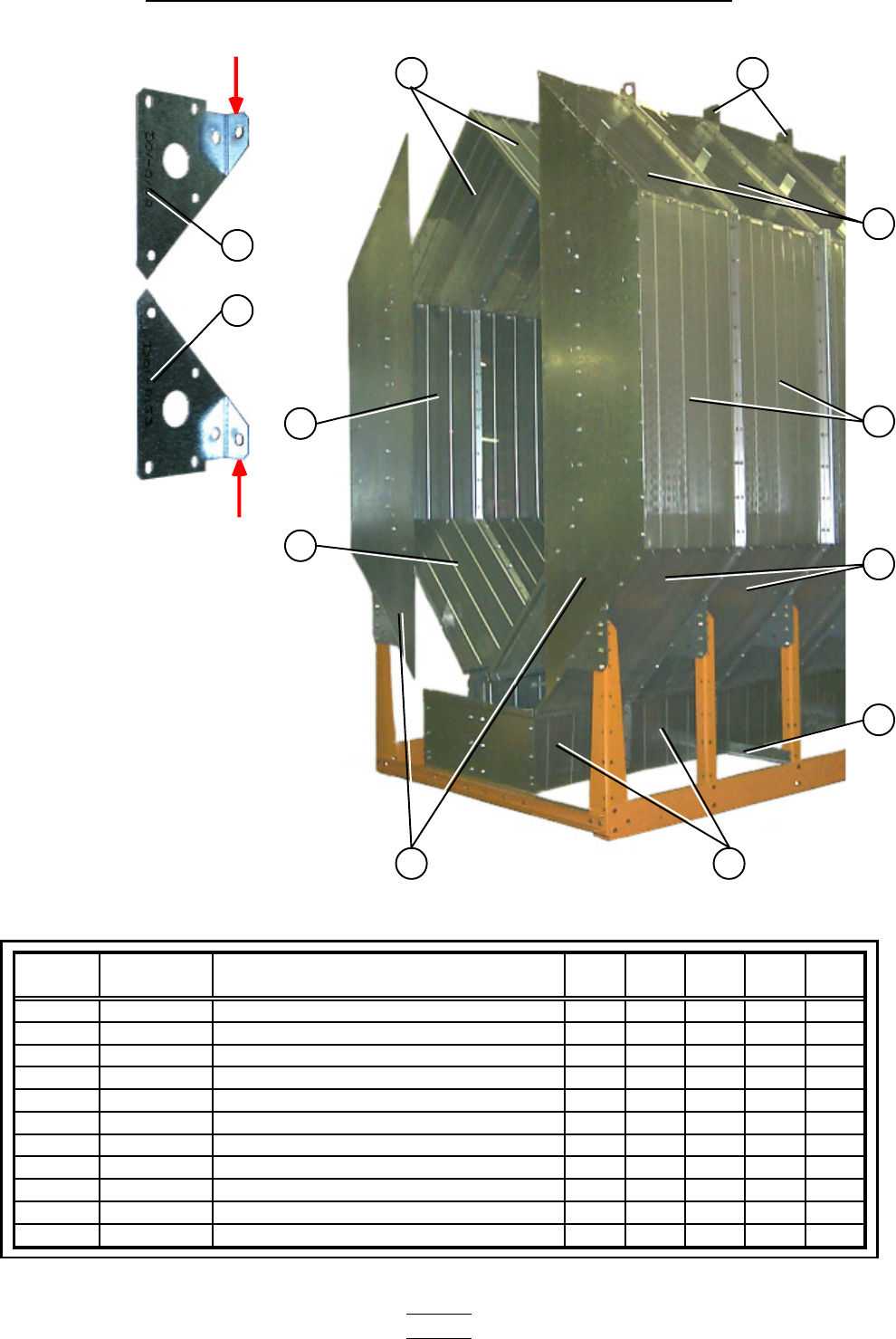

*Note: Item 4 is

pointing to the top edge

angle gusset. There are

two types of gusset on

the dryer. The photo

right will help

distinguish the

difference between the

two. The arrows are

pointing to a tab on the

gusset that makes them

different (tabs are

“bent” up in photo).

Item 4a is used in two

places only; 1.) front

right of dryer 2.) rear

left of dryer, all others

are item 4.

ITEM

NUMBER

PART

NUMBER

DESCRIPTION 2314 2318 2320 2322 2326

1 D01-0126 SCREEN,PLENUM TOP,GA,094 14 18 20 22 26

2 D31-0012 SCREEN,PLENUM WALL,GA,094 14 18 20 22 26

3 D01-0124 SCREEN,PLENUM BOTTOM,GA,094 14 18 20 22 26

4 D01-0152 LH TOP ANGLE GUSSET 12 16 18 20 24

4a D01-0153 RH TOP ANGLE GUSSET 2 2 2 2 2

5 D01-0127 SCREEN,ROOF,GA,094 14 18 20 22 26

6 D31-0013 SCREEN,OUTSIDE WALL,GA,094 14 18 20 22 26

7 D01-0128 SCREEN,HOPPER,GA,094 14 18 20 22 26

8 D61-0019 MODULE TIE BRACE 6 8 10 10 12

9 D61-0073 SCREEN,CONNECTING-OUTER,GA,094 14 18 20 22 24

10 D31-0307 COLUMN END PANEL 4 4 4 4 4
