2300 Series Parts Manual Top Module

- 39 -

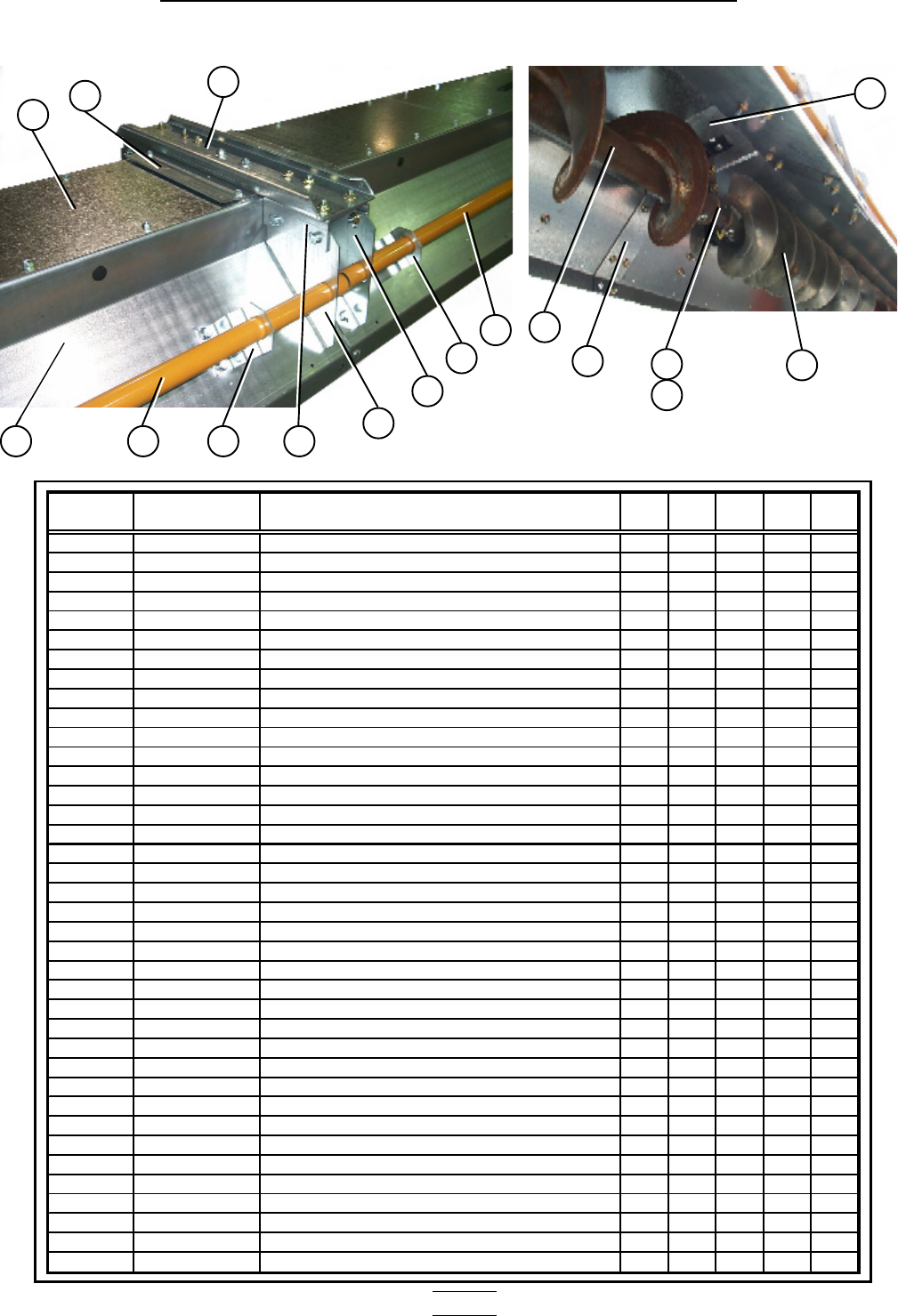

Top Auger bearing support. Top Auger bearing support (inside view).

Top Auger With Wet Bin Assembly

10 21 22 18

ITEM

NUMBER PART NUMBER

DESCRIPTION 2314 2318 2320 2322 2326

1 D01-1521 WET BIN SIDE,4'SIDE GALV. PERF 4 4 2 4

1 D01-1522 WET BIN SIDE,6'SIDE GALV. PER 2 6466

2 D01-0103 MERCURY SWITCH SHAFT 1 1111

3 D21-0003 TOP EDGE ANGLE 71.875" 2 2

3 D31-0004 TOP EDGE ANGLE 95.875" 2 2 4 4

3 D01-0168 TOP EDGE ANGLE 119.875" 2 4 2

3a D31-0003 TOP EDGE ANGLE SPLICE 2 2244

5 D01-0147 TOP AUGER HOUSING HINGE L.H. 2 2222

6 D01-0167 MERCURY SWITCH PADDLE WELDMENT 1 1111

7 D21-0015 AUGER TOP FRONT WELDMENT 1 1

7 D31-0091 AUGER TOP FRONT WELDMENT 1 1 1

7 D31-0267 AUGER TOP & BOTTOM WELDMENT 1 1 2 2

7 D61-0184 AUGER WELDMENT 117 7/8" 1

8 D01-0148 TOP AUGER HOUSING HINGE R.H. 2 2222

9 D01-1525 WET BIN END 2 2222

10 D21-0002 TOP AUGER TROUGH SIDE/6' 2 2

10 D31-0010 TOP AUGER TROUGH SIDE/8' 2 2 4 4

10 D01-0161 TOP AUGER TROUGH SIDE/10' 2 4 2

11 D01-1650 REAR AUGER BEARING COVER 1 1111

12 D31-0028 TOP AUGER HOUSING END 2 2222

13 D32-0001 BEARING 1 1/2" DIA W/FLANGETTE 2 2222

14 D31-0090 SHAFT, TOP AUGER FRONT 1 1111

14a D31-0005 SHAFT, TOP AUGER STUB REAR 1 1111

15 D01-1123 TOP AUGER COVER, 30.25" 1 1111

15 D01-1124 TOP AUGER COVER, 24.25" 3 5757

15 D01-1125 TOP AUGER COVER, 20.25" 2 2244

16 D31-0015 TOP AUGER BEARING SUPPORT 1 1122

17 D31-0011 CENTER STABILIZER BEAM 1 1122

18 D31-0009 GUSSET ATTACH BRACKET 2 2244

19 D31-0001 CENTER HANDRAIL GUSSET L.H. 2 2244

20 D31-0002 CENTER HANDRAIL GUSSET R.H. 2 2244

21 D21-0001-Y HAND RAIL-SUPPORT,1"EMTX71.75" 2 2

21 D31-0006-Y HAND RAIL SUPPORT,1"EMTX95.75" 2 2 4 4

21 D01-0151-Y HAND RAIL, 1"EMT X119.75"LONG 2 4 2

22 D01-0140 HANGER BRACKET-HANDRAIL GALV. 16 16 16 24 24

23 D31-0008 TOP AUGER TROUGH SPLICE 2 2244

24 D01-1245 TOP AUGER BEARING HANGER ASSY. 1 1122

25 D31-0076 SHAFT, AUGER SPLICE 1 1122
